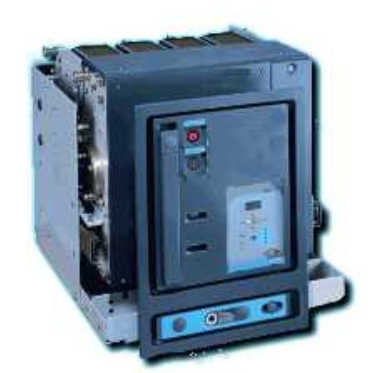

Air Circuit Breaker (ACB) : We do following during regular maintenance of ACB.

  • Cleaning of breaker with CRC-226
  • Removal of old Grease and re-greasing the same with recommended grease
  • Check condition of arcing contact and gap between fixed and moving arcing contracts shall be checked.
  • Check condition of arcing contact and gap between fixed and moving arcing contracts shall be checked.
  • Checking the reset mechanism, tripping of breaker through push button.
  • Checking the reset mechanism, tripping of breaker through push button.
  • Checking tripping of ACB through protection release.
  • Checking presence and proper tightening of hardware.
  • Checking presence of all cir clips.
  • Checking condition and alignment of jaw contract with cradle terminals
  • Checking condition of ACB wiring and replace if required.
  • Checking and adjusting gap between hylam sheet and side plate.
  • Checking proper closing of all poles together.
  • Checking working of anti pumping device in case of EDO ACB.
  • Checking alignment of SIC and its operation.
  • Checking scrapping earth alignment.
  • Checking condition of arc chutes.
  • Checking U/V release pickup and drop off.
  • Checking ACB tripping through Shunt release.
  • Checking motor operation in case of EDO ACB.
  • Checking closing coil operation in case of EDO ACB.
  • Checking continuity and proper changeover of aux contract block.
  • Checking IR between phases � phase (ACB Closed condition).
  • Checking IR between phases � earth (ACB closed Condition).
  • Checking IR between phases � earth (ACB in open condition).
  • Checking of release by secondary injection for 01. S/C, E/F.
  • Setting of release as per the load.
  • Checking the healthiness of CTs.
  • After the inspection, the ACB shall be checked for proper termination by mv drop Test.
